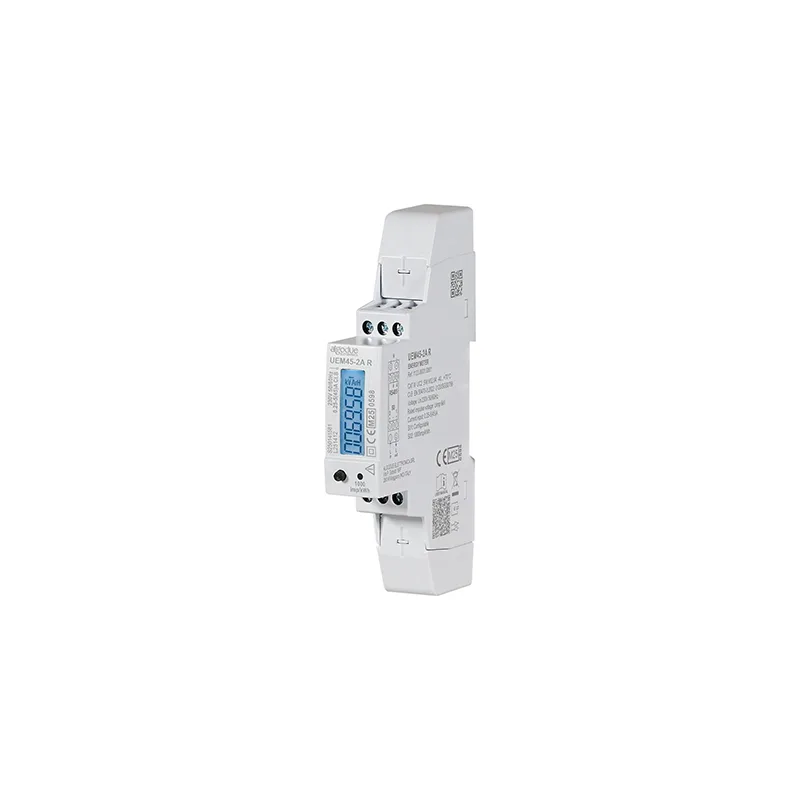

UEM45-2A M 45A/1ph/2wires, 230V 50Hz, M-Bus, MID

​UEM45-2A R is the new high-performance single-phase energy meter, certified for operation up to 70°C.
​Its compact design (1 DIN module) enables easy integration into panels with limited space, while ensuring high measurement accuracy and advanced functionality.
​It supports direct connection up to 45 A and communication via RS485 Modbus RTU or M-Bus.
​The meter provides bidirectional measurement, compliant with MID Class B (EN 50470-3), making it suitable for billing and certified energy accounting. It measures energy and key electrical parameters, which can be displayed both on the backlit LCD and through the RS485 communication port.
​The device features two S0 outputs for pulse emission—one fixed and one fully programmable—and supports up to four tariff management settings.
​Optional software is available for device management.​
